Operation Bulletin of Vest

In my industrial engineering tutorial series, I am sharing an Operation Bulletin of Vest. You can refer to this operation bulletin to learn about various operations involved, SMV and machine requirements in making Vest.

A Vest is not an easy style to produce in the sewing line. It has lots of complex processes. Here I describe the operation breakdown of the Vest with SMV and Machine names.

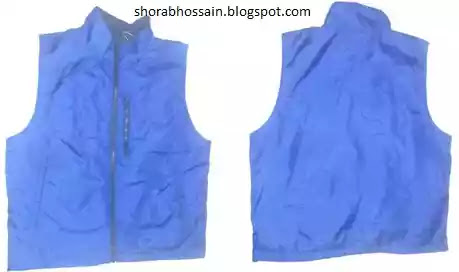

Vest item is sleeve less Jacket. Operation Bulletin of Vest is done by the following table. In this operation bulletin process list, estimated time, machine name, hourly production target quantity at 100% and 60% efficiency are shown. The estimated time (SMV) shown in the below table will vary according to the product method followed and machine and equipment used in actual production. So please be careful while you use the above estimated time against each operation.

Operation Bulletin of Vest

Operation Bulletin of Vest

SL.	Operation	Type of Machine	SMV	Target 100%	Target 60%
1	Main Label Placement Mark	Manual	0.25	240	144
2	Main Label Attach	SNLS	0.35	171	103
3	Back Moon Iron	IRON	0.40	150	90
4	Back Moon Attach	SNLS	0.40	150	90
5	Front Facing Fusing Attach	Manual	0.30	200	120
6	Front Facing Attach (L)	SNLS	0.45	133	80
7	Front Facing Attach ®	SNLS	0.45	133	80
8	Front Facing Top Stitch L	SNLS	0.35	171	103
9	Front Facing Top Stitch (R)	SNLS	0.35	171	103
10	Bone Fusing Attach	Manual	0.20	300	180
11	Bone Make	SNLS	0.20	300	180
12	Pocket Fasing Attach	SNLS	0.20	300	180
13	Pocket Placement Mark	Manual	0.25	240	144
14	Bone Number Match	Manual	0.25	240	144
15	Bone Attach	DNLS	0.30	200	120
16	Pocket Setting	Manual	0.40	150	90
17	Pocketing Attach at Body	SNLS	0.25	240	144
18	Bone Top Stitch (Lower)	SNLS	0.30	200	120
19	Bone Top Stitch (Upper)	SNLS	0.30	200	120
20	Pocket Bag Closing	SNLS	0.35	171	103
21	Back Front Number Match	Manual	0.25	240	144
22	Shoulder Join	SNLS	0.35	171	103
23	Tap Mark & Cut	Manual	0.25	240	144
24	Care Label & Tap  Attach	SNLS	0.30	200	120
25	Side Seam Join	SNLS	0.45	133	80
26	Hanger Loop Make & Cut	SNLS	0.25	240	144
27	Hanger Loop Attach	SNLS	0.20	300	180
28	Back Yoke Join	SNLS	0.40	150	90
29	Back Yoke Top Stitch (1/4)	SNLS	0.35	171	103
30	Front Yoke Join	SNLS	0.40	150	90
31	Front Yoke Top Stitch (1/4)	SNLS	0.35	171	103
32	Bone Fusing Attach	Manual	0.25	240	144
33	Bone Make	SNLS	0.35	171	103
34	Side Pocket Facing Attach	SNLS	0.30	200	120
35	Side Pocket Placement Mark	Manual	0.25	240	144
36	Bone Attach	DNLS	0.60	100	60
37	Pocket Setting	Manual	0.45	133	80
38	Pocketing Attach at Body (Lower)	SNLS	0.39	154	92
39	Pocketing Attach at Body (Upper)	SNLS	0.39	154	92
40	Bone Top Stitch (Lower)	SNLS	0.50	120	72
41	Bone Top Stitch (Upper)	SNLS	0.50	120	72
42	Pocket Bag Closing	SNLS	0.60	100	60
43	Chest Pocket Facing Attach	SNLS	0.25	240	144
44	Chest Pocket Placement Mark	Manual	0.30	200	120
45	Chest Pocket Facing Sewing at Body	SNLS	0.45	133	80
46	Pocket Setting	Manual	0.40	150	90
47	Chest Pocket Zipper Attach	SNLS	0.60	100	60
48	Pocketing Attach at Body	SNLS	0.39	154	92
49	Pocket Bag Closing	SNLS	0.30	200	120
50	Back & Front Number Match	Manual	0.25	240	144
51	Shoulder Join	SNLS	0.35	171	103
52	Shoulder Top Stitch (1/4)	SNLS	0.30	200	120
53	Side Seam Join	SNLS	0.55	109	65
54	Armhole Facing Tack	SNLS	0.30	200	120
55	Armhole Facing Iron	IRON	0.45	133	80
56	Armhole Facing Attach	SNLS	0.80	75	45
57	Collar Fusing Attach	Manual	0.25	240	144
58	Collar Marking	Manual	0.25	240	144
59	Collar Sewing	SNLS	0.45	133	80
60	Collar Number Match	Manual	0.25	240	144
61	Collar Attach	SNLS	0.65	92	55
62	Zipper Placement Mark	Manual	0.30	200	120
63	Zipper Attach (L)	SNLS	0.50	120	72
64	Zipper Marking	Manual	0.25	240	144
65	Zipper Attach (R)	SNLS	0.50	120	72
66	Collar Mouth Tack	SNLS	0.25	240	144
67	Lining Number Matching	Manual	0.25	240	144
68	Shell & Lining Attach at Neck Side	SNLS	0.50	120	72
69	Shell & Lining Attach at Arm Hole	SNLS	0.65	92	55
70	Armhole Top Stitch	SNLS	0.60	100	60
71	Armhole Rolling	SNLS	0.65	92	55
72	Shell & Lining Attach at Zipper Side	SNLS	0.90	67	40
73	Body Turn	Manual	0.50	120	72
74	All Supporting Tack.	SNLS	0.60	100	60
75	Grommet Placement Mark	Manual	0.25	240	144
76	Grommet Hole	SNP	0.15	400	240
77	Grommet Attach(2P)	SNP	0.20	300	180
78	Draw cord Mark & Cut	Manual	0.25	240	144
79	Insert Draw cord	Manual	0.30	200	120
80	Draw cord Tack at Body	SNLS	0.25	240	144
81	Bottom Tack	SNLS	0.20	300	180
82	Bottom Rolling	SNLS	0.75	80	48
83	Zipper Top Stitch With Collar	SNLS	1.25	48	29
84	Final Trimming	Manual	0.75	80	48
	Total		32.77

Full form of Machine Name:

In the above table a short name of sewing machines is written. Followings are the abbreviation of those short machine codes.

SNLS - Single needle lock stitch

DNLS - Double needle lock stitch

3T O/L - 3 Thread over lock

SNP - Snap Button Machine

Manual - Helper

How to set the target per hour in the Sewing line of the Garment Factory?

It will be best to set the line layout target based on line efficiency, line cost and delivery date of the style.

Formula to set the 100% target:

Daily Target = (Worker x Working hour x 60/ SMV) x efficiency %

Basic Pitch Time (BPT) =Total SMV / Total Manpower

We can use “Ball Point" needle to stitch this item.

Fabric Types and Needle Size Chart:

Fabric Types	Needle Size
Very fine fabrics (silk, chiffon, organza, voile, lace)	8, 9, 10
Light weight fabrics (cotton, heavier silks, synthetics, spandex, lycra)	11, 12

Operation Bulletin makes our work easy to set up a production line in the apparel industry. We can easily manage machine and operator requirements for any sewing line by this. But it is necessary to do an operation breakdown to prepare a machine layout and line balancing by industrial engineering (IE).

Visit here to know what operation breakdown is. You can visit my post to learn more about bulletin or breakdown of garments.  in the garment industry. Do you have any suggestion? Let me know in the comment.
