Operation Bulletin of Jogger Cargo Pant
A Jogger Cargo Pant is not an easy style to produce in the sewing line. It has lots of complex processes. Two back welt pockets with flaps, two side cargo pockets with flaps. In the bottom of the jogger pant has elastic. Here I describe the operation breakdown of the Jogger Cargo Pant with SMV and Machine names.
Operation Bulletin of Jogger Cargo Pant is done by the following table. In this operation bulletin process list, estimated time, machine name, hourly production target quantity at 100% and 65% efficiency are shown. The estimated time (SMV) shown in the below table will vary according to the product method followed and machine and equipment used in actual production. So please be careful while you use the above estimated time against each operation.

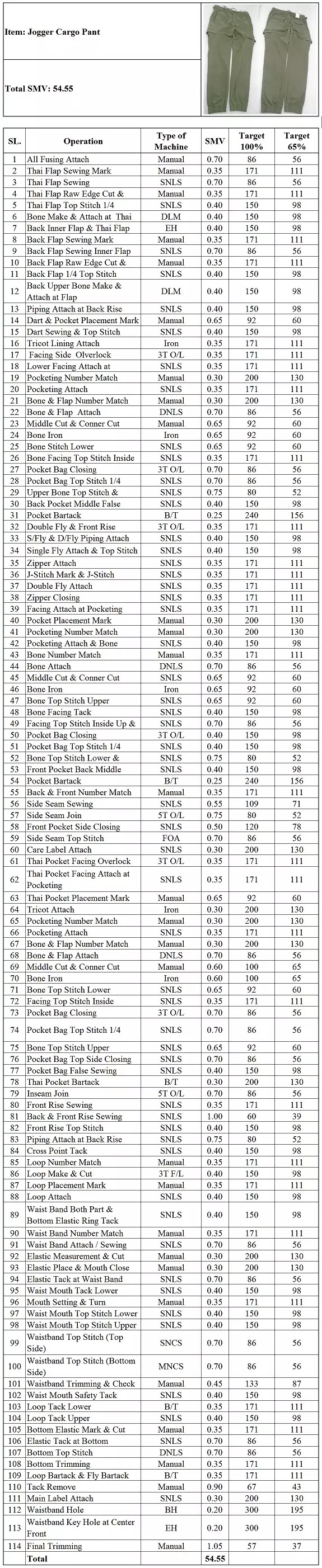

Operation Bulletin of Jogger Cargo Pant
SL. |
Operation |
Type of Machine |
SMV |
Target 100% |
Target 65% |
1 |
All Fusing Attach |
Manual |
0.70 |
86 |
64 |
2 |
Thai Flap Sewing Mark |
Manual |
0.35 |
171 |
129 |
3 |
Thai Flap Sewing |
SNLS |
0.70 |
86 |
64 |
4 |
Thai Flap Raw Edge Cut & Turn |
Manual |
0.35 |
171 |
129 |
5 |
Thai Flap Top Stitch 1/4 |
SNLS |
0.40 |
150 |
113 |
6 |
Bone Make & Attach at Thai Flap |
DLM |
0.40 |
150 |
113 |
7 |
Back Inner Flap & Thai Flap
Hole |
EH |
0.40 |
150 |
113 |
8 |
Back Flap Sewing Mark |
Manual |
0.35 |
171 |
129 |
9 |
Back Flap Sewing Inner Flap Tack |
SNLS |
0.70 |
86 |
64 |
10 |
Back Flap Raw Edge Cut & Turn |
Manual |
0.35 |
171 |
129 |
11 |
Back Flap 1/4 Top Stitch |
SNLS |
0.40 |
150 |
113 |
12 |
Back Upper Bone Make & Attach
at Flap |
DLM |
0.40 |
150 |
113 |
13 |
Piping Attach at Back Rise |
SNLS |
0.40 |
150 |
113 |
14 |
Dart & Pocket Placement Mark |
Manual |
0.65 |
92 |
69 |
15 |
Dart Sewing & Top Stitch |
SNLS |
0.40 |
150 |
113 |
16 |
Tricot Lining Attach |
Iron |
0.35 |
171 |
129 |
17 |
Facing Side Overlook |
3T O/L |
0.35 |
171 |
129 |
18 |
Lower Facing Attach at Pocketing |
SNLS |
0.35 |
171 |
129 |
19 |
Pocketing Number Match |
Manual |
0.30 |
200 |
150 |
20 |
Pocketing Attach |
SNLS |
0.35 |
171 |
129 |
21 |
Bone & Flap Number Match |
Manual |
0.30 |
200 |
150 |
22 |
Bone & Flap Attach |
DNLS |
0.70 |
86 |
64 |
23 |
Middle Cut & Conner Cut |
Manual |
0.65 |
92 |
69 |
24 |
Bone Iron |
Iron |
0.65 |
92 |
69 |
25 |
Bone Stitch Lower |
SNLS |
0.65 |
92 |
69 |
26 |
Bone Facing Top Stitch Inside |
SNLS |
0.35 |
171 |
129 |
27 |
Pocket Bag Closing |
3T O/L |
0.70 |
86 |
64 |
28 |
Pocket Bag Top Stitch 1/4 |
SNLS |
0.70 |
86 |
64 |
29 |
Upper Bone Top Stitch & Pocket
Bag False Sewing |
SNLS |
0.75 |
80 |
60 |
30 |
Back Pocket Middle False Sewing |
SNLS |
0.40 |
150 |
113 |
31 |
Pocket Bartack |
B/T |
0.25 |
240 |
180 |
32 |
Double Fly & Front Rise
Overlock |
3T O/L |
0.35 |
171 |
129 |
33 |
S/Fly & D/Fly Piping Attach |
SNLS |
0.40 |
150 |
113 |
34 |
Single Fly Attach & Top Stitch |
SNLS |
0.40 |
150 |
113 |
35 |
Zipper Attach |
SNLS |
0.35 |
171 |
129 |
36 |
J-Stitch Mark & J-Stitch |
SNLS |
0.35 |
171 |
129 |
37 |
Double Fly Attach |
SNLS |
0.35 |
171 |
129 |
38 |
Zipper Closing |
SNLS |
0.35 |
171 |
129 |
39 |
Facing Attach at Pocketing |
SNLS |
0.35 |
171 |
129 |
40 |
Pocket Placement Mark |
Manual |
0.30 |
200 |
150 |
41 |
Pocketing Number Match |
Manual |
0.30 |
200 |
150 |
42 |
Pocketing Attach & Bone Make |
SNLS |
0.40 |
150 |
113 |
43 |
Bone Number Match |
Manual |
0.35 |
171 |
129 |
44 |
Bone Attach |
DNLS |
0.70 |
86 |
64 |
45 |
Middle Cut & Conner Cut |
SNLS |
0.65 |
92 |
69 |
46 |
Bone Iron |
Iron |
0.65 |
92 |
69 |
47 |
Bone Top Stitch Upper |
SNLS |
0.65 |
92 |
69 |
48 |
Bone Facing Tack |
SNLS |
0.40 |
150 |
113 |
49 |
Facing Top Stitch Inside Up &
Lower Facing Attach |
SNLS |
0.70 |
86 |
64 |
50 |
Pocket Bag Closing |
3T O/L |
0.40 |
150 |
113 |
51 |
Pocket Bag Top Stitch 1/4 |
SNLS |
0.40 |
150 |
113 |
52 |
Bone Top Stitch Lower & Pocket
Bag False Sewing |
SNLS |
0.75 |
80 |
60 |
53 |
Front Pocket Back Middle False
Sewing |
SNLS |
0.40 |
150 |
113 |
54 |
Pocket Bartack |
B/T |
0.25 |
240 |
180 |
Assemble |
|||||
55 |
Back & Front Number Match |
Manual |
0.35 |
171 |
129 |
56 |
Side Seam Sewing |
SNLS |
0.55 |
109 |
82 |
57 |
Side Seam Join |
5T O/L |
0.75 |
80 |
60 |
58 |
Front Pocket Side Closing |
SNLS |
0.50 |
120 |
90 |
59 |
Side Seam Top Stitch |
FOA |
0.70 |
86 |
64 |
60 |
Care Label Attach |
SNLS |
0.30 |
200 |
150 |
61 |
Thai Pocket Facing Overlock |
3T O/L |
0.35 |
171 |
129 |
62 |
Thai Pocket Facing Attach at
Pocketing |
SNLS |
0.35 |
171 |
129 |
63 |
Thai Pocket Placement Mark |
Manual |
0.65 |
92 |
69 |
64 |
Tricot Attach |
Iron |
0.30 |
200 |
150 |
65 |
Pocketing Number Match |
Manual |
0.30 |
200 |
150 |
66 |
Pocketing Attach |
SNLS |
0.35 |
171 |
129 |
67 |
Bone & Flap Number Match |
Manual |
0.30 |
200 |
150 |
68 |
Bone & Flap Attach |
DNLS |
0.70 |
86 |
64 |
69 |
Middle Cut & Conner Cut |
Manual |
0.60 |
100 |
75 |
70 |
Bone Iron |
Iron |
0.60 |
100 |
75 |
71 |
Bone Top Stitch Lower |
SNLS |
0.65 |
92 |
69 |
72 |
Facing Top Stitch Inside |
SNLS |
0.35 |
171 |
129 |
73 |
Pocket Bag Closing |
3T O/L |
0.70 |
86 |
64 |
74 |
Pocket Bag Top Stitch 1/4 |
SNLS |
0.70 |
86 |
64 |
75 |
Bone Top Stitch Upper |
SNLS |
0.65 |
92 |
69 |
76 |
Pocket Bag Top Side Closing |
SNLS |
0.70 |
86 |
64 |
77 |
Pocket Bag False Sewing |
SNLS |
0.40 |
150 |
113 |
78 |
Thai Pocket Bartack |
B/T |
0.30 |
200 |
150 |
79 |
Inseam Join |
5T O/L |
0.70 |
86 |
64 |
80 |
Front Rise Sewing |
SNLS |
0.35 |
171 |
129 |
81 |
Back & Front Rise Sewing |
SNLS |
1.00 |
60 |
45 |
82 |
Front Rise Top Stitch |
SNLS |
0.40 |
150 |
113 |
83 |
Piping Attach at Back Rise |
SNLS |
0.75 |
80 |
60 |
84 |
Cross Point Tack |
SNLS |
0.40 |
150 |
113 |
85 |
Loop Number Match |
Manual |
0.35 |
171 |
129 |
86 |
Loop Make & Cut |
3T F/L |
0.40 |
150 |
113 |
87 |
Loop Placement Mark |
Manual |
0.35 |
171 |
129 |
88 |
Loop Attach |
SNLS |
0.40 |
150 |
113 |
89 |
Waist Band Both Part & Bottom
Elastic Ring Tack |
SNLS |
0.40 |
150 |
113 |
90 |
Waist Band Number Match |
Manual |
0.35 |
171 |
129 |
91 |
Waist Band Attach / Sewing |
SNLS |
0.70 |
86 |
64 |
92 |
Elastic Measurement & Cut |
Manual |
0.30 |
200 |
150 |
93 |
Elastic Place & Mouth Close
Mark |
Manual |
0.30 |
200 |
150 |
94 |
Elastic Tack at Waist Band |
SNLS |
0.70 |
86 |
64 |
95 |
Waist Mouth Tack Lower Upper |
SNLS |
0.40 |
150 |
113 |
96 |
Mouth Setting & Turn |
Manual |
0.35 |
171 |
129 |
97 |
Waist Mouth Top Stitch Lower |
SNLS |
0.40 |
150 |
113 |
98 |
Waist Mouth Top Stitch Upper |
SNLS |
0.40 |
150 |
113 |
99 |
Waistband Top Stitch (Top Side) |
SNCS |
0.70 |
86 |
64 |
100 |
Waistband Top Stitch (Bottom Side) |
MNCS |
0.70 |
86 |
64 |
101 |
Waistband Trimming & Check |
Manual |
0.45 |
133 |
100 |
102 |
Waist Mouth Safety Tack |
SNLS |
0.40 |
150 |
113 |
103 |
Loop Tack Lower |
B/T |
0.35 |
171 |
129 |
104 |
Loop Tack Upper |
SNLS |
0.40 |
150 |
113 |
105 |
Bottom Elastic Mark & Cut |
Manual |
0.35 |
171 |
129 |
106 |
Elastic Tack at Bottom |
SNLS |
0.70 |
86 |
64 |
107 |
Bottom Top Stitch |
DNLS |
0.70 |
86 |
64 |
108 |
Bottom Trimming |
Manual |
0.35 |
171 |
129 |
109 |
Loop Bartack & Fly Bartack |
B/T |
0.35 |
171 |
129 |
110 |
Tack Remove |
Manual |
0.90 |
67 |
50 |
111 |
Main Label Attach |
SNLS |
0.30 |
200 |
150 |
112 |
Waistband Hole at Inside |
BH |
0.20 |
300 |
225 |
113 |
Waistband Key Hole at Center Front |
EH |
0.20 |
300 |
225 |
114 |
Final Trimming |
Manual |
1.05 |
57 |
43 |
|
Total |
|
54.55 |
|
|
Full form of Machine Name:
In the above table a short name of sewing machines is written. Followings are the abbreviation of those short machine codes.
- SNLS - Single Needle Lock Stitch
- MNCS - Multi Needle Chain Stitch
- DNLS - Double Needle Lock Stitch
- 3T O/L - Three Thread Over Lock
- 5T O/L - Five Thread Over lock
- DLM - Single Needle Edge Side Cutter
- 3T F/L - Three Thread Flat Lock
- BH - Button Hole
- B/T - Bartack
- EH - Eyelet Hole
- Manual - Helper
How to set the target per hour in the Sewing line of the Garment Factory?
Formula to set the 100% target:
Daily Target = (Worker x Working hour x 60/ SMV) x efficiency %
Basic Pitch Time (BPT) =Total SMV / Total Manpower
You can set your production target base on your Line efficiency and machine cost.
We can use “Ball Point or Sharp Point" needle to stitch this item.
Single / Double Needle Lock-stitch --- DB 1
Single Needle Edge Side Cutter --- DB 1
Multi Needle Chain Stitch --- UO 11
Three / Five Thread Overlock --- DC 21
Three Thread Flat lock --- UY 128
Button Hole --- DP 5
Bartack --- DP 5
Eyelet Hole --- DO 5
Fabric Types and Needle Size Chart:
Operation Bulletin makes our work easy to set up a production line in the apparel industry. We can easily manage machine and operator requirements for any sewing line by this. But it is necessary to do an operation breakdown to prepare a machine layout and line balancing by industrial engineering (IE).
Visit here to know what is operation breakdown. You can visit my website to learn more about the bulletin or breakdown of garments.
Thank you for your patience reading. Please, Share this article with others. It will inspire me to write more about this. Please keep in touch with my page to know the update.
